Applications:

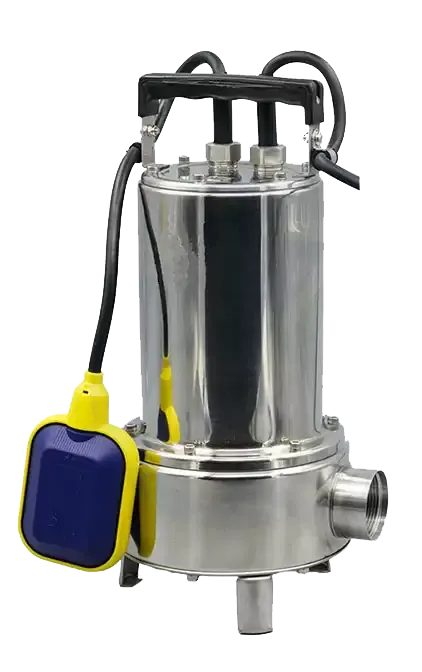

Vortex impeller submersible pumps made of stainless steel AISI304,designed for dirty waters containing organic solids.The particular shape of the impeller allows the free passage of solidmaterials up to 50 mm diameter. Suitable to lift dirty waters and empty cesspits.

Specifications

1. Power Cable: Standard cord is 10m

2. Liquid Temperature: 104°F(40℃) continuous

3. Motor: B insulation class, IP68 protection

4. Single Phase: Built in thermal protector

5. Accessories: Float switch is available
Part Specifications

1. O-ring: Buna-N

2. Motor Housing: AISI 304

3. Shaft: AISI 304  welding shaft

4. Double-sided Mechanical Seal: Buna-N elastomers
    Motor side: Carbon VS Silicon Carbide
    Pump side: Silicon Carbide VS Silicon Carbide

5. Impeller: AISI 304  welding

6. Pump Casing: AISI 304
