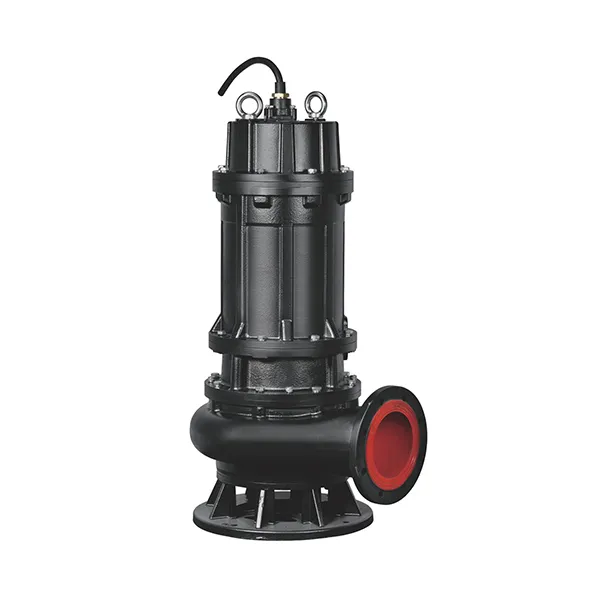

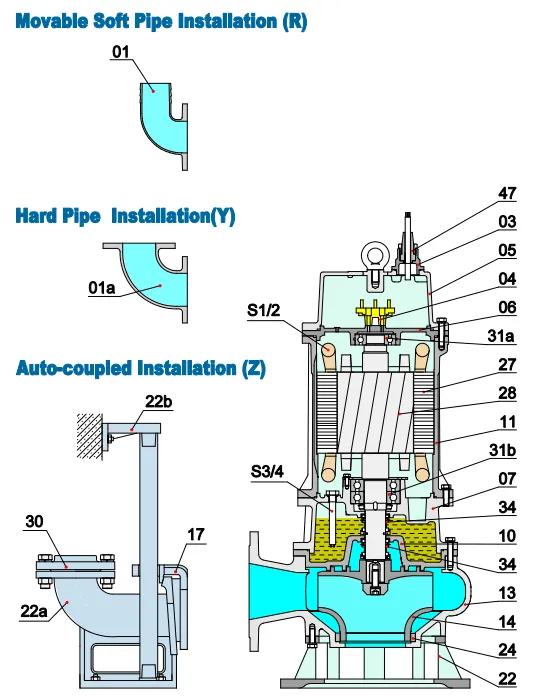

Structure and characteristics

B pump incorporates a channel impeller developed exclusively for sewage pumps. The impeller has a wide channel extending from inlet to exit, which prevents internal clogging by solids sucked in the inlet.

Application

● For waste water discharge of industry, shopping mall, hospital, hotel.

● For domestic sewage and storm-water drainage of uptown, parking lot and municipal engineering.

● For sewage discharge of sewage treatment plant and farm.

● For pumping muddy water and lye of construction factory and mine.

● For pumping clean water of agriculture and aquaculture.

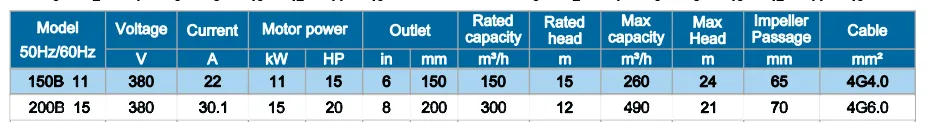

Specification

●Insulation class: F

●Protection class: IP68

●Starting method: reduced-voltage starting

●Water temperature: up to 40℃

●PH: 6 -10

●Density of liquid: 1.3g/cm³

●Power supply: three-phase 380V±10%, 50Hz

                          three-phase 380V±10%, 60Hz

                          single-phase 220V±10%, 50Hz

                          single-phase 220V±10%, 60Hz

●Capacity: up to760m³/h

●Head: up to 44m

●Maximum immersion depth: 20m

●Cable length: 8m
