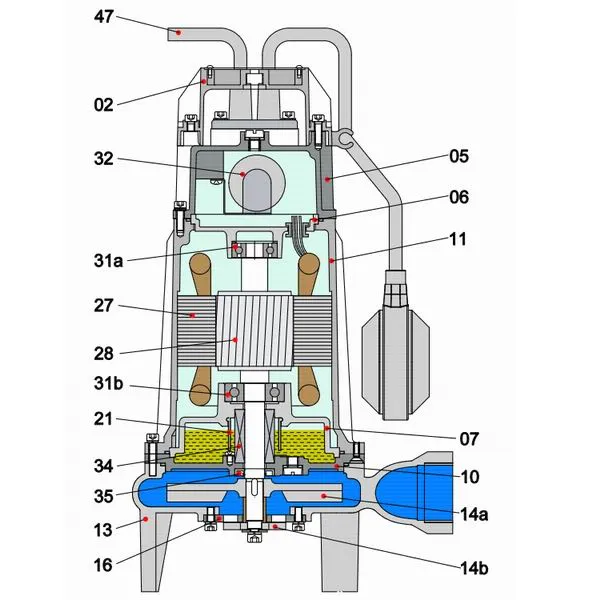

Structure and characteristics

Semi Vortex impeller design minimize the clogging situation for maximum durability and maintaining pump performance. A grinding mechanism is provided at the suction inlet of the pump. Suspended solids in flow are cut into small pieces and pumped out by a vortex impeller without a fear of clogging in the discharge pipe.

Application

1. Transferring the domestic sewage.

2. Transferring the wastewater from the wastewater tanks of hospitals, hotels, department stores, etc.

3. Transferring and grinding the sewage containing plastic bags, fabrics, small bones, etc.

Specification

●Water temperature: up to 40℃

●PH: 6-10

●Power supply: single phase 230V±10%, 50Hz/60Hz

              three phase 380V±10%, 50Hz/60Hz

●Insulation class: F

●Protection class: IP68

●Cable length: 8m

●Max water depth: 10m

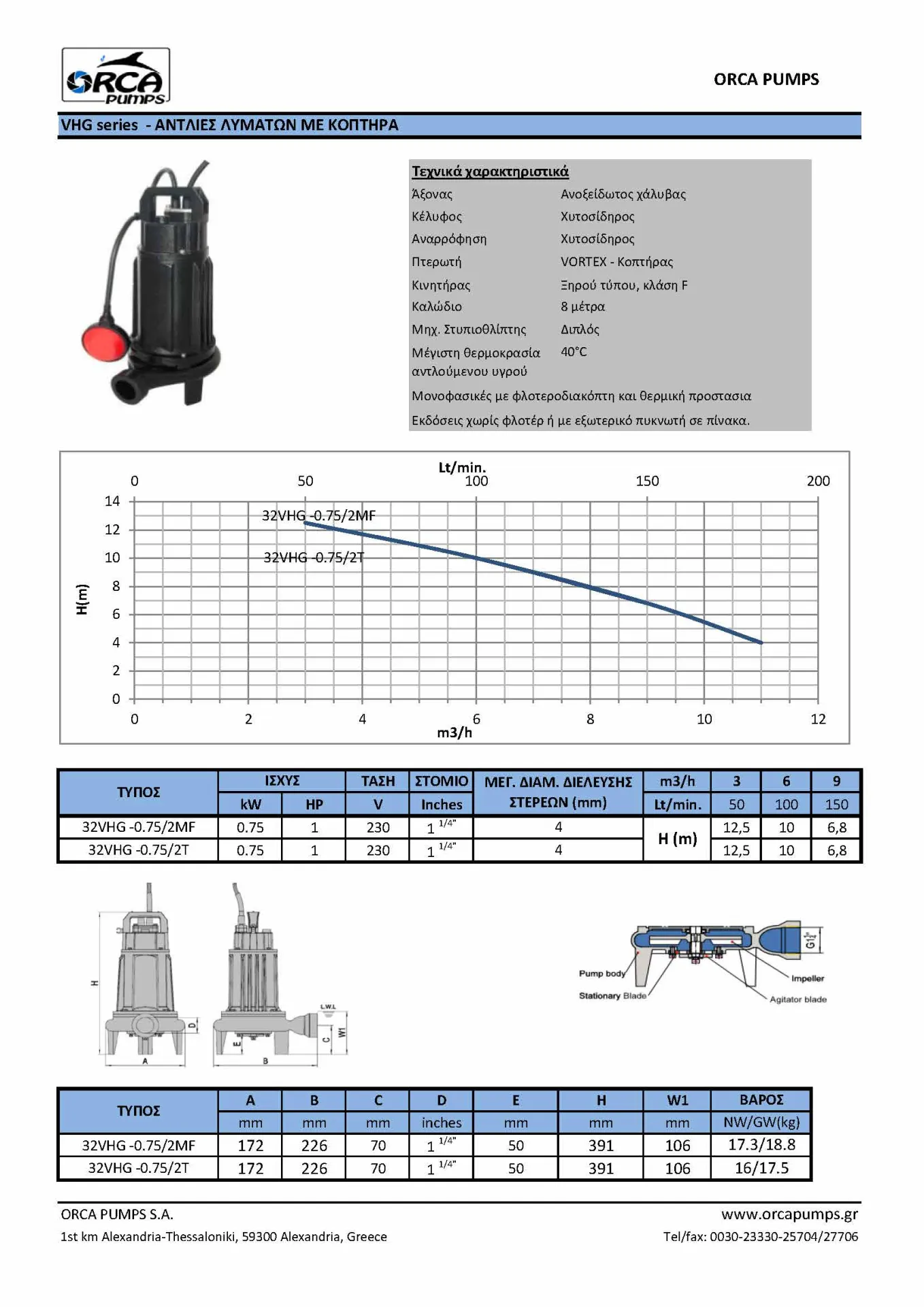

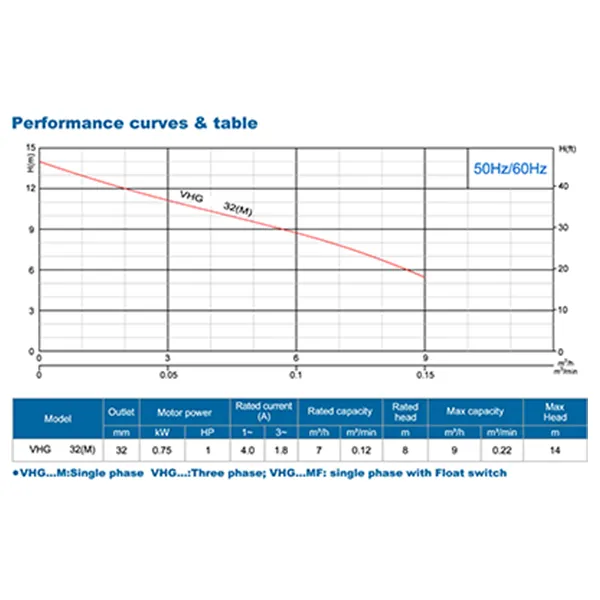

Καμπύλη Νο. 1
