Applications:

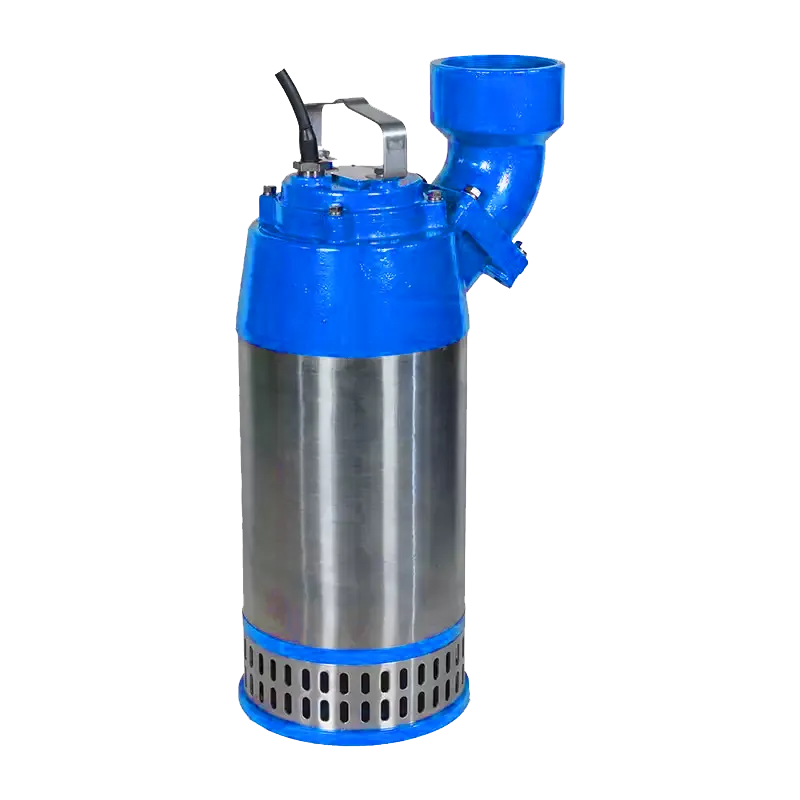

ADW series are wear resistant submersible pumps and ideal for pumping water and dirty water mixed with soil , solids , etcThe pumps are used to pump surface water from building sites , wells , subways or tunnels , for lowering ground waterfor irrigation , supply of industrial water , etcThe water jacket cooled motor with the top discharge protects the motor against overheating even during sip operationThe low weight and compact design ensure convenient transport , handling , and installation .

Specifications

1. Standard cables:10 m H07RN-F cable type

2. Liquid Temperature range: From 0℃ to 40℃

3. Max.medium density:1100kg/m

4.PH of the pumped medium:5-8

5.Motor:B insulation class, IP68 protection

6.Built-in thermal and current overload protection and a

capacitor permanently on in the single phase version

7.Accessories:Single-phase versions can be equipped with

or without float switches for automatic operation
Part Specifications

1. O-ring: Buna-N

2. Motor Housing:Aluminum

3. Shaft: AISI 420 welding shaft

4. Double-sided Mechanical Seal: Buna-N elastomers
    Motor side: Carbon VS Silicon Carbide
    Pump side: Silicon Carbide VS Silicon Carbide

5. Impeller:PTMG or Ductile iron

6. Pump Casing: Aluminum
