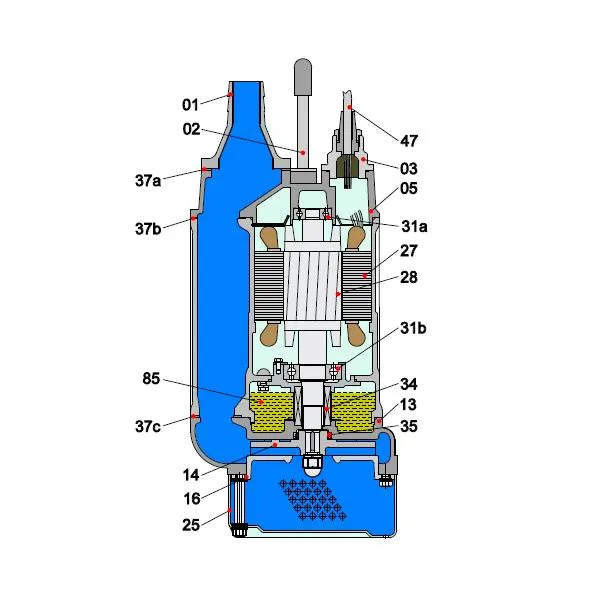

Structure and characteristics

The KBZ series high-temperature submersible electric pump can handle liquids up to 80 degrees Celsius.

The insulation level, rubber material, bearings, and lubrication of the motor are upgraded on the basis of the standard type (handling liquids up to 40 degrees Celsius).

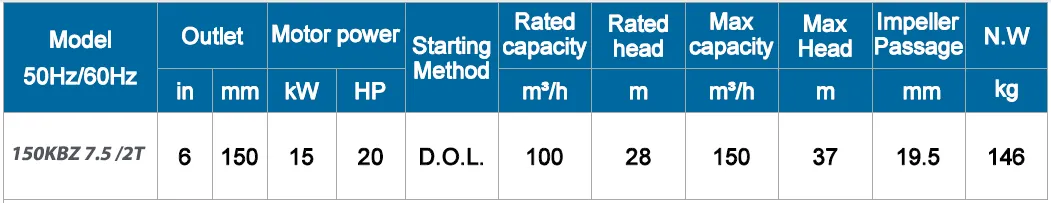

Specification

   Discharge Bore : 50-150mm

   Power:1.5kW (2HP) to 15 kW (20HP)

   Insulation class : H

   Protection class : IP68

   Water temperature : up to 80℃

   PH : 6 to 10

   Power supply :

      three  phase 400V ±10%, 50Hz

      three  phase 380V ±10%, 60Hz

   Motor protection :  not have

   Capacity : up to 150m³/h

   Head : up to 52m

   Maximum immersion depth : 25m

   Cable Length : 8m
