Αντλία Βαρέων Λυμάτων τύπου 80U 5.5 4T DN80

Αντλία Βαρέων Λυμάτων τύπου 80U 5.5 4T

Αντλία Βαρέων Λυμάτων τύπου 80U 5.5 4T

Tριφασική. Ιδανική για διαχείριση αστικών λυμάτων, άδειασμα σηπτικών δεξαμενών και βόθρων, διακίνηση βιομηχανικών αποβλήτων. αντλίες βαρέως τύπου τιμες, αντλιες λυματων θεσσαλονικη. orcapumps.

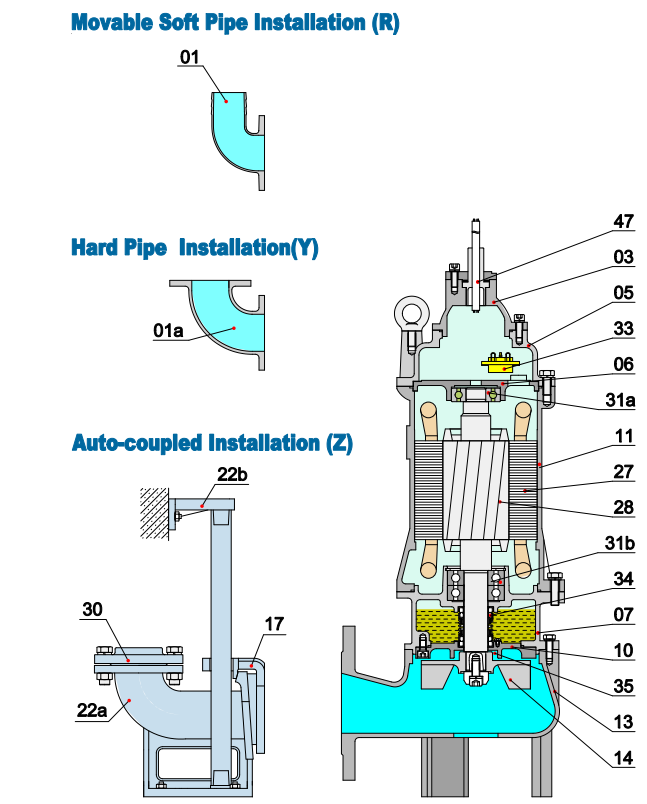

Structure and characteristics

U pump is a multi-purpose pump with a vortex impeller. The impeller used mainly in volute pumps. Vortex impellers pump water by the eddy flow caused by interaction with the casing, which prevents internal clogging by solids and fibrous matter.

Application

The U series is especially useful for pumping waste water containing large-particle matters of construction site and mine.

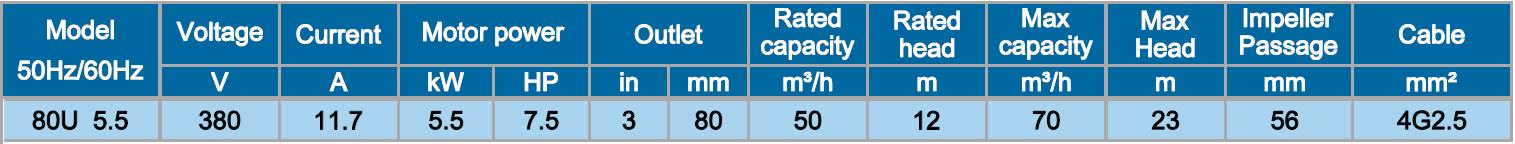

Specification

●Insulation class: F

●Protection class: IP68

●Water temperature: up to 40℃

●PH: 6-10

●Power supply: three phase 380V±10%, 50Hz

             three phase 380V±10%, 60Hz

●Motor protection: built in

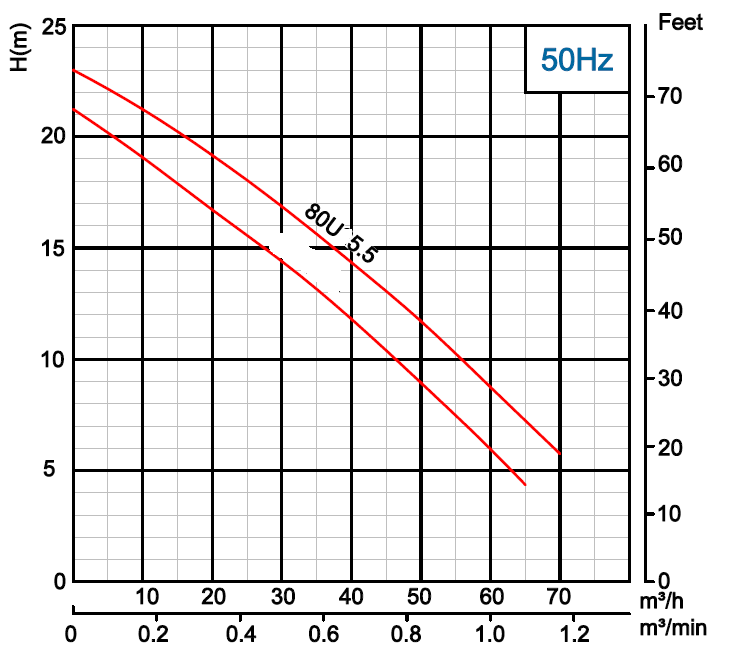

●Capacity: up to 70m³/h

●Head: up to 23m

●Max water depth: 10m

●Cable Length: 8m
