Αντλία Aποστράγγισης Εργοταξιακή τύπου 100KS 5.5 2T DN100

Αντλία Aποστράγγισης Εργοταξιακή τύπου 100KS 5.5 2T

Αντλία Aποστράγγισης Εργοταξιακή τύπου 100KS 5.5 2T, τριφασική. Ιδανική για άντληση υγρών με στερεά, λάσπης κτλ., αντλίες εργοταξιακές τιμες, αντλιες λάσπης θεσσαλονικη. orcapumps.

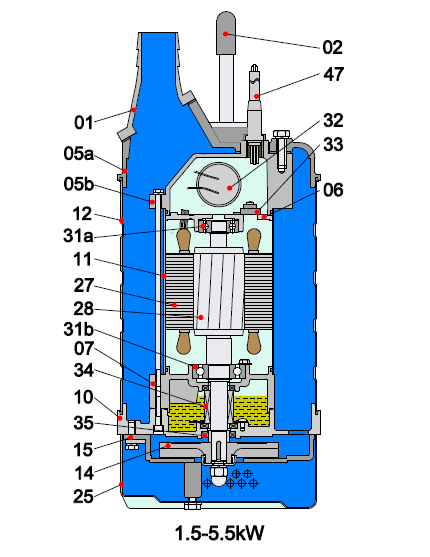

Structure and characteristics

Compact design, high performance and exceptional durability for handing abrasive liquid, widely used in general construction and civil engineering.

The body of motor and pump is made of rigid cast iron or stainless steel for long-lasting durability.

Greatly increased maximum submersion depth due to mechanical seal resistant to high pressure.

Semi-open impeller made of high chrome alloy match with wear plate (ductile iron) achieves superior durability.

Effective motor cooling due to discharge channel cast as part of the motor housing.

Discharge 50mm(2”) to 150mm(6”), motor 0.25kW(0.35HP) to 11kW(15HP)

Hermetically sealed motor equipped build-in thermal protection
Application:

Civil engineering

Mines, quarries, coal ore & slurries

Sewage treatment plants

General pumping purposes
